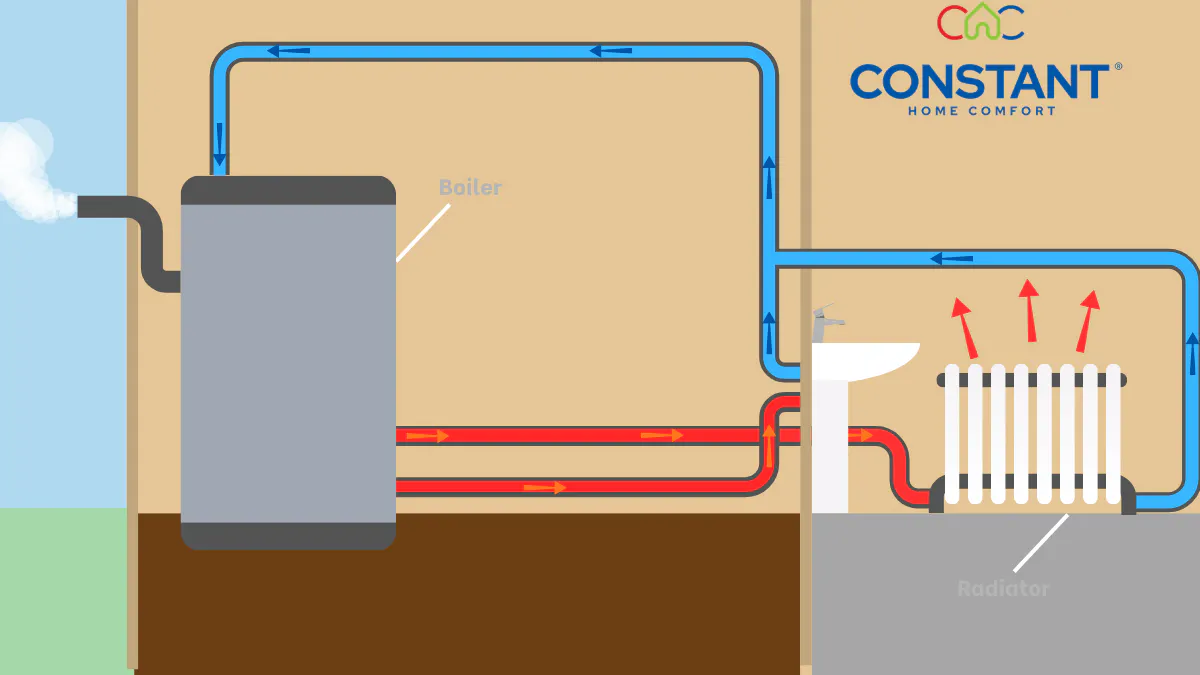

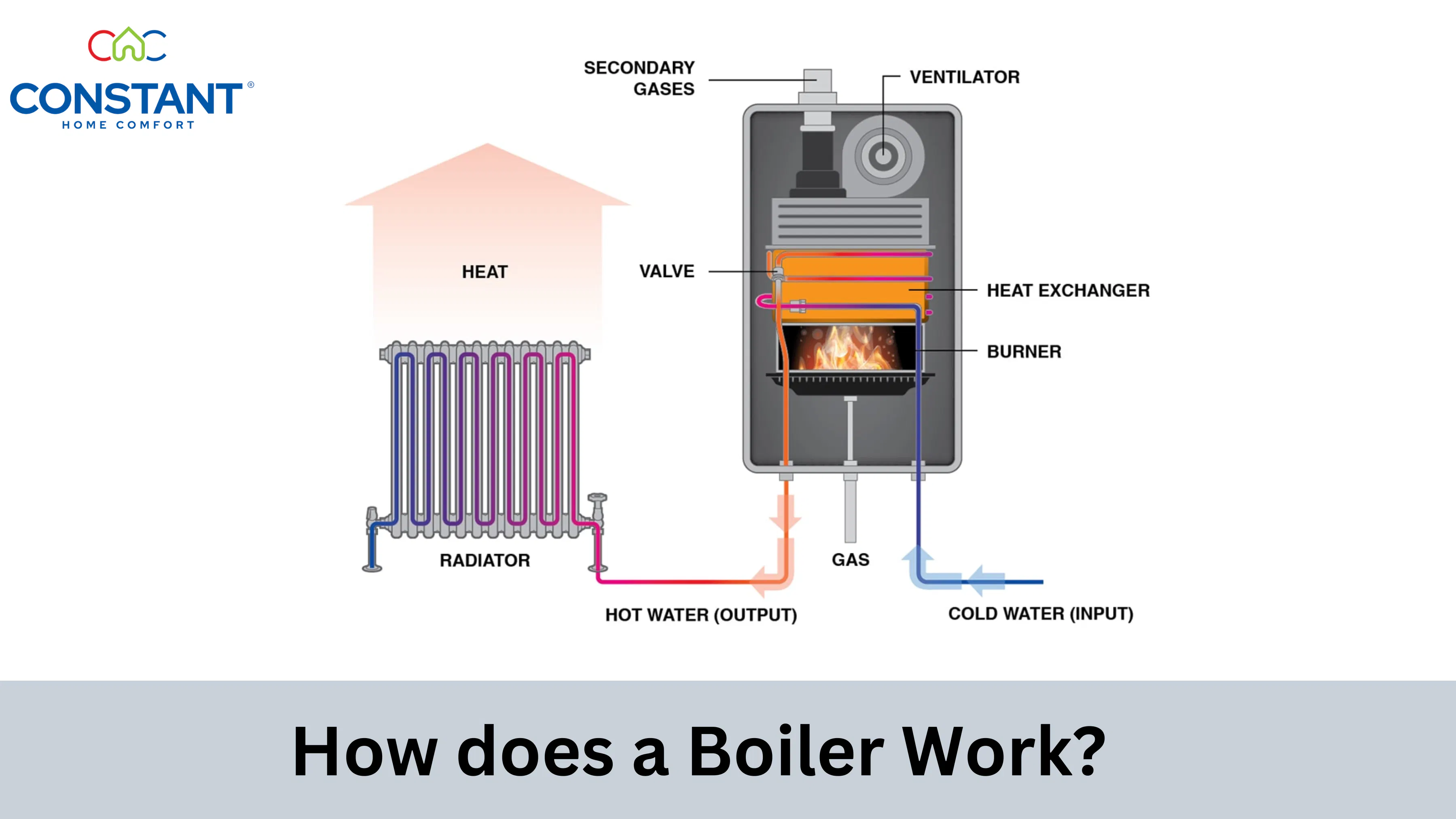

A boiler’s main job is to heat water efficiently. When the thermostat calls for heat, the boiler’s control board starts the burner (either gas/electric) and the circulator pump. In a gas boiler, the burner lights under the heat exchanger, transferring heat into the water. In an electric boiler, heating elements do this job. The heated water then flows out through pipes to radiators or in-floor heating loops; after losing heat in the home, the cooler water returns to the boiler for reheating. The system also includes an expansion tank (to handle water expansion as it heats) and a pressure-relief valve (which vents if pressure gets too high). An air vent automatically removes air from the system.

Most boilers also have circulating loops (zones). A zone control board can operate multiple zones (radiator or baseboard circuits), as Allied’s Mini-Gas boiler shows with integrated zone controls. The boiler maintains water temperature via a control and t-stat sensor (usually on the outlet). Older boilers may have a pilot light, while modern ones use electronic ignition. Components often include: a low-water cutoff, flame rollout switch, and digital controller. Condensing boilers also have a condensate trap and drain because cooled exhaust water must be removed. Safety features like blocked-vent switches (shutting off the burner if venting is blocked) and flame sensors are standard. The boiler vents combustion gases through a chimney or PVC vent (for condensing units) to the outside.

Boilers come in several configurations:

• Conventional (Regular) boilers: These require an expansion tank (open or closed) and a separate tank for domestic hot water (indirect or a tankless coil). They use on/off burners. Older conventional boilers are typically non-condensing with AFUE ~80–85%.
• Combi (Combination) boilers: Compact wall-mounted units that provide both space heating and domestic hot water on demand (no separate tank). All domestic and hydronic uses run off the same boiler.
• System boilers: Similar to conventional but with built-in components (e.g. pump) and still use a separate hot-water tank.

Condensing vs Non-Condensing: Modern high-efficiency boilers are condensing. A condensing boiler has a second heat exchanger to capture latent heat from flue gases, producing water vapor. This can push efficiency to the mid-90% AFUE range. For example, Viessmann’s Vitodens condensing boiler achieves “up to 98% at full modulation, with 95% AFUE”. Non-condensing boilers exhaust hotter gases and top out around 85% efficiency. Condensing boilers require plastic (PVC) venting and a condensate drain. Because of colder Ontario winters, condensing boilers are generally recommended for long-term savings.

Modulating Burners: Many modern boilers use modulating burners (called mod/con boilers) that adjust flame intensity to match the heat demand. This minimizes cycling and increases efficiency. At low load, the boiler runs quietly at partial power; at full demand, it ramps up to maximum output. Modulating condensing boilers thus maintain high AFUE across varying conditions.

Efficiency (AFUE): The Annual Fuel Utilization Efficiency measures heating output per fuel unit. Older boiler technologies ran ~80% AFUE; today’s mid-efficiency boilers are ~85–90%, and high-end condensing boilers exceed 90–95% (some models like Viessmann reach 98% at certain settings). Savings: An 95% AFUE boiler wastes only 5% of fuel, versus ~15–20% waste in an 85% model. (Exact savings depend on fuel type, climate, and usage). CHC’s high-eff boilers qualify for some rebates when replacing older units.

Safety is critical in boiler operation. Key safety features include:

• Pressure Relief Valve: Protects against overpressure. If water pressure/temperature exceed safe limits, it opens to dump water and relieve pressure.
• Expansion Tank: Accommodates the thermal expansion of water. An internal bladder separates the air cushion from water to prevent pressure spikes.
• High-Limit (Temperature) Control: Shuts the burner off if water temperature exceeds a safe maximum (prevents overheating and boiling).
• Low-Water Cutoff: In boilers with low water content (e.g. steam boilers), a cutoff prevents firing if water is too low, avoiding dry-firing damage.
• Blocked-Vent Switch (Air-Pressure Switch): Detects if combustion air intake or venting is blocked. It will shut off the burner to prevent dangerous gas accumulation (Allied boilers include a blocked vent switch).
• Flame Sensor/Ionization Probe: In electronic ignition systems, this sensor confirms flame presence. If ignition fails or flame goes out, it cuts gas flow for safety. Allied boilers have a combination gas valve with dual automatic shutoff for 100% safety.

Additionally, we recommend installing a Carbon Monoxide (CO) detector near the boiler (and sleeping areas) since boilers can leak CO if venting fails. Modern boiler controls (like Honeywell or factory panels) also handle ignition sequences and diagnostics. The CHC Mini-Gas boiler, for example, lists features like “thermal purge, limit control, spark ignition” in its integrated controller.

Regular maintenance keeps boilers efficient and safe. Tips include:

• Annual Inspection: Have a certified tech (like CHC’s team) inspect and clean the burner, heat exchanger, and controls. Check and adjust boiler water pressure. Drain the expansion tank if needed. Inspect venting for leaks or blockages.
• Check Boiler Water: Keep the correct water level and pressure (often ~12–15 psi for hydronic systems). Bleed air from radiators/loops after filling. Too much air causes noisy flow and can trigger low-water faults.
• Condensate Drain: For condensing boilers, ensure the condensate drain and trap are clean/unfrozen. A clogged condensate line can shut the boiler down.
• Replace Anode (Indirect DHW Tanks): If your boiler heats an indirect hot-water tank, check the tank’s sacrificial anode yearly.

Common issues: No heat or reduced heat can result from a faulty thermostat, stuck circulator pump, air trapped in the system, or failed ignition components. Short cycling (boiler firing too frequently) often means the boiler is oversized or the thermostat anticipates too much. Water leaks can come from corroded heat exchangers, pumps, or fittings. Hard water buildup should be treated with proper water quality management. If a boiler frequently trips its pressure relief valve, this may indicate overpressure or an expansion tank failure.

Q1: How often should a boiler be serviced?
Boilers should be professionally serviced at least once a year. An annual tune-up catches issues early (like soot buildup, leaks, or control failures) and maintains efficiency and safety. CHC offers maintenance plans for scheduled boiler check-ups.

Q2: What’s the difference between a combi boiler and a regular boiler?
A combi boiler provides both space heating and instant domestic hot water without a separate tank. A regular (conventional) boiler only handles home heating and usually requires a separate tank or indirect coil for hot water. Combi units save space but may have lower hot-water flow than systems with a storage tank.

Q3: Do I need a condensing boiler?
Condensing boilers recover heat from exhaust gases, achieving up to ~90–98% AFUE[2]. In cold climates like Ontario, they save a lot on fuel over time and are often required for rebates. Non-condensing boilers are cheaper but waste more heat. If your budget allows, a condensing model is generally recommended for best efficiency.

Q4: How do I tell if my boiler is condensing or non-condensing?
Condensing boilers have PVC venting and a condensation drain (pipe running out to a floor drain). They often list high AFUE (90%+) on the spec. Non-condensing models use metal flues and typically have AFUE in the 80s. If you see the boiler’s documentation (e.g., “Vitodens – condensing” or know it has a stainless steel heat exchanger), it’s condensing.

Q5: What should I do if my boiler pressure is too high?
First, turn off the boiler. Check the pressure gauge on the boiler (should be ~12–15 psi cold). If it’s higher, you can bleed some pressure via a draincock or by opening a radiator valve. If pressure consistently climbs, have a technician inspect the expansion tank (it may be waterlogged) and the pressure relief valve. Never ignore the pressure relief valve leaking.
