A conventional tank water heater — also called a storage tank water heater — is a system that heats and stores a large volume of water (typically 40 to 60 gallons) in an insulated tank, keeping it ready at your preferred temperature at all times. Unlike tankless systems that heat water on demand, a conventional tank maintains a constant reservoir of hot water, so you always have it available the moment you turn on the tap.

Before diving into the process, it helps to know the main parts that make up the system:

• Storage Tank: The insulated steel vessel that holds your hot water supply.
• Cold Water Inlet: The pipe through which cold water enters the tank from your home's supply line.
• Heat Source (Burner or Heating Element): Depending on whether your unit is gas or electric, this is the component that raises the water temperature.
• Thermostat: Monitors and controls the water temperature inside the tank, typically set between 49°C and 60°C (120°F and 140°F).
• Dip Tube: Directs incoming cold water to the bottom of the tank so it does not mix with the hot water at the top.
• Hot Water Outlet: Located at the top of the tank, this pipe delivers hot water to your fixtures and appliances.
• Anode Rod: A sacrificial metal rod that protects the tank's interior lining from corrosion and extends its lifespan.
• Pressure Relief Valve (T&P Valve): A critical safety feature that releases pressure if the tank gets too hot or the internal pressure rises dangerously high.
• Flue or Exhaust Vent (gas models): Vents combustion gases safely out of your home.

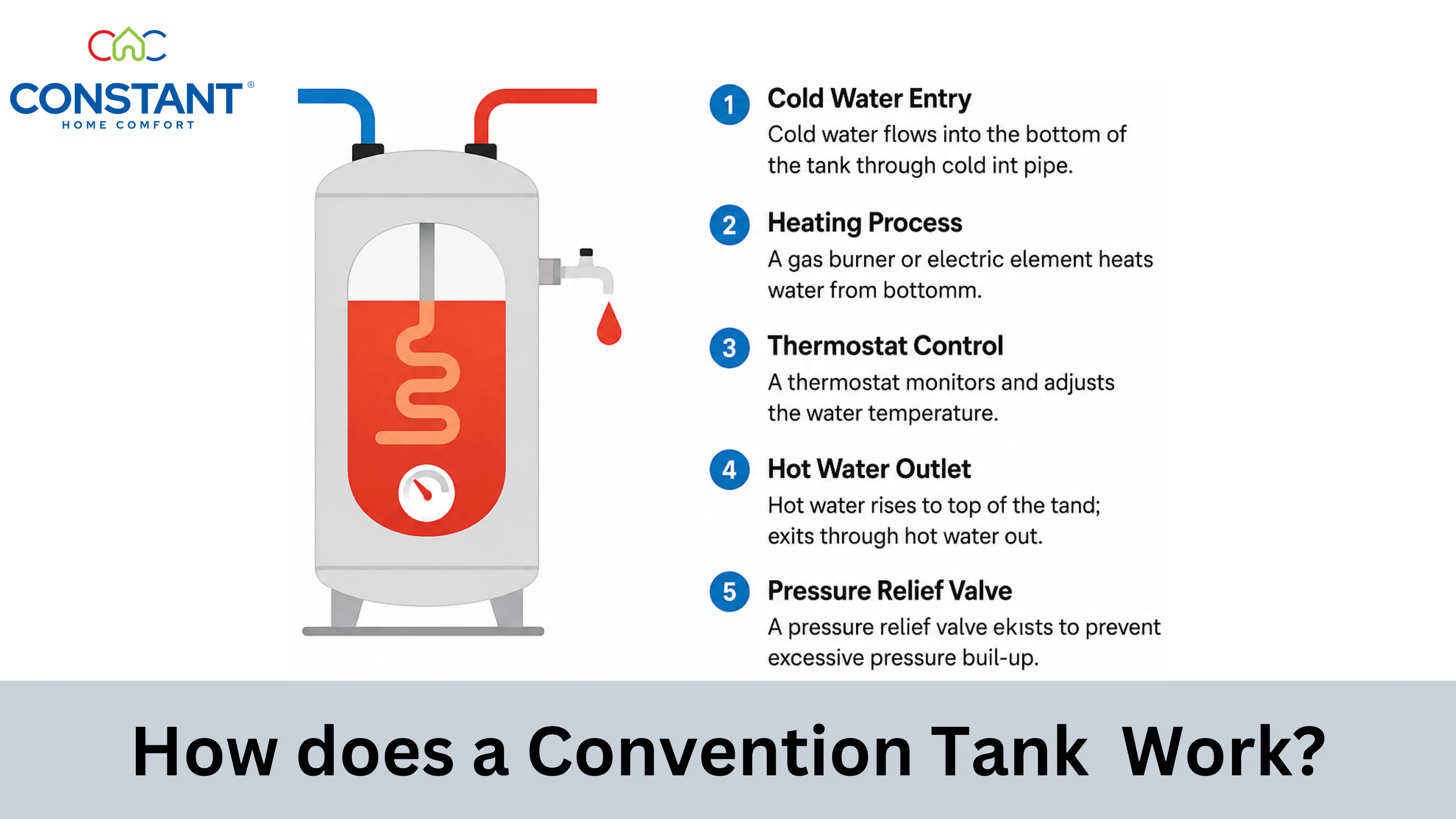

Step 1 — Cold Water Enters the Tank

Cold water flows from your home's main supply line into the tank through the cold water inlet pipe. The dip tube directs this water to the very bottom of the tank, keeping it away from the already-heated water stored near the top. This separation ensures you always get consistently hot water at your fixtures, not a lukewarm mix.

Step 2 — The Water Gets Heated

Once cold water fills the tank, the heat source activates to warm it up. The way this happens depends on the type of unit:

• Gas Water Heaters: A gas burner located beneath the tank ignites and heats the water from the bottom up. Hot combustion gases travel through a flue running through the center of the tank and are vented outside.
• Electric Water Heaters: One or two electric heating elements positioned inside the tank heat the surrounding water directly, similar to how an electric kettle works.

Since hot water naturally rises, the warmest water accumulates at the top of the tank — right where the hot water outlet is positioned — and is always ready to be delivered the moment you need it.

Step 3 — The Thermostat Maintains Temperature

The thermostat constantly monitors the water temperature. Once it reaches the set temperature, the burner or heating elements shut off automatically. When the water cools down below the set point — whether from use or natural heat loss through the tank walls — the thermostat triggers the heat source to cycle back on. This continuous cycle is what keeps hot water available 24 hours a day.

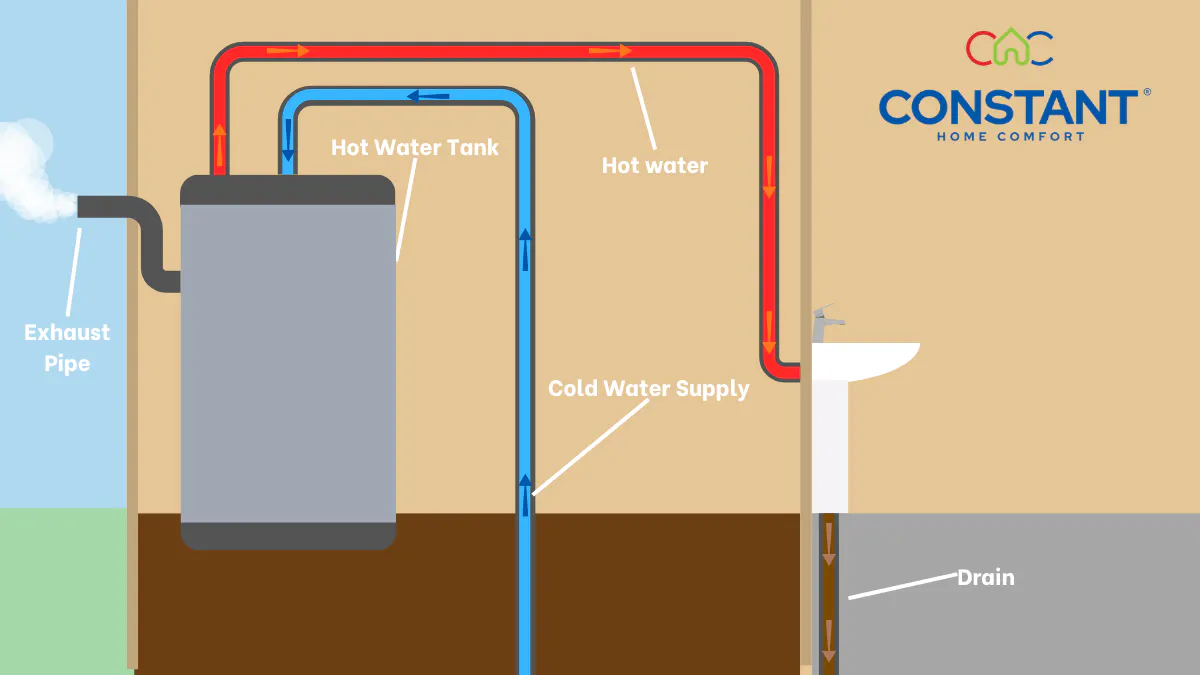

Step 4 — Hot Water Is Delivered to Your Home

When you open a hot water tap or start your dishwasher, hot water is drawn from the top of the tank through the hot water outlet pipe and travels through your home's plumbing to the fixture. As hot water leaves, cold water automatically flows in to replace it, and the heating cycle begins again to restore the tank's supply.

Both gas and electric models follow the same overall process, but there are some important practical differences for Ontario homeowners to consider:

• Gas models typically heat water faster and cost less to operate on a monthly basis in most Ontario markets, but require proper venting and a natural gas connection.
• Electric models are easier to install (no venting required) and may suit homes without a gas line, but generally have higher monthly operating costs.
• Both types are available in various tank sizes to match your household's hot water demand.

Conventional tank water heaters remain one of the most popular choices for Ontario homeowners for good reason:

• Lower upfront cost compared to tankless systems, making them an accessible option for most budgets.
• Simpler installation and repairs, which means lower service costs over time.
• Consistent hot water availability with no delay — the tank is always ready.
• Compatible with all home types, including older properties that may not support tankless upgrades without major retrofits.
• Proven, reliable technology with a lifespan of 10 to 15 years when properly maintained.

Knowing when your unit is struggling can save you from a cold morning or a flooded basement. Watch for these warning signs:

• You are running out of hot water faster than usual
• Water temperature is inconsistent or noticeably lower than normal
• Visible rust or corrosion on the tank or in your hot water
• Strange rumbling, popping, or banging noises coming from the tank (often caused by sediment buildup)
• Leaks or pooling water around the base of the unit
• Your water heater is over 10 years old

If you are noticing any of these issues, our team at Constant Home Comfort is available 24/7 for water heater repairs and replacements across Ontario.

A little routine care goes a long way toward extending the life of your unit and keeping your energy bills in check:

• Flush the tank once a year to remove sediment buildup, which reduces efficiency and causes noise.
• Inspect and replace the anode rod every 3 to 5 years to protect the tank from corrosion.
• Test the pressure relief valve annually to confirm it is functioning safely.
• Set your thermostat to 49°C (120°F) for an efficient balance of comfort, safety, and energy savings.
• Enroll in an annual maintenance plan to have a licensed technician inspect your unit and catch small issues before they become costly.

Whether you need a new conventional tank water heater installed, your current unit serviced, or advice on whether to upgrade to a tankless system, Constant Home Comfort has you covered. We carry top-performing models from trusted brands including Bradford White and Giant, and our certified technicians serve homeowners across:

• Greater Toronto Area (GTA) — Toronto, Markham, Richmond Hill, Vaughan, Mississauga, Scarborough, Newmarket, and more
• Hamilton
• Ottawa and Kanata
• London and Waterloo
• Barrie and Burlington

We offer flexible financing options with 0% interest plans available O.A.C., so upgrading your water heater does not have to strain your budget. Our team also handles all paperwork for available rebate programs, making the process as simple as possible for you.

Call us anytime at 1-888-675-5907 — we are available 24/7 for service, sales, and free quotes.

How long does a conventional tank water heater last?

With proper maintenance, a conventional tank water heater typically lasts 10 to 15 years. Regular flushing and anode rod replacement can help extend that lifespan.

How big a tank do I need for my home?

Tank size depends on your household size and daily hot water usage. As a general guide: a 40-gallon tank suits 1 to 3 people, a 50-gallon tank works well for 3 to 4 people, and a 60-gallon or larger tank is better for families of 5 or more. Our team can recommend the right size during a free in-home consultation.

Should I repair or replace my conventional tank water heater?

If your unit is under 8 years old, a repair is often the more cost-effective choice. If it is approaching or past the 10-year mark, or if the repair cost is more than half the price of a new unit, replacement is usually the smarter investment. Our technicians will give you an straightforward recommendation with no pressure.

Is a conventional tank or a tankless water heater better for my home?

Tankless water heaters offer superior energy efficiency and unlimited hot water on demand, but come at a higher upfront cost and may require modifications to your home's gas line or electrical system. Conventional tanks are more affordable up front, simpler to install, and ideal for homes with steady, predictable hot water needs. We offer both and can help you determine which is the better fit.
